\(QS74_{8}^{(1)}\)
Description

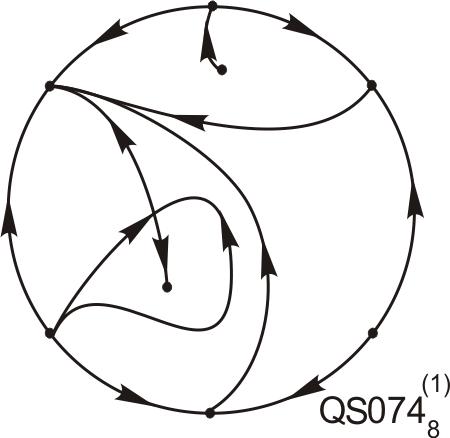

Phase Portrait
Topological Invariants
| TCSP | Fin Sep | Inf Sep |
|---|---|---|
| \(74\) | \(411\) | \(321011\) |
Example
The quadratic differential system
\[\begin{cases} \dot{x} = y+2 \, x^{2}+5 \, x \, y \\ \dot{y} = d+e \, y+x^{2}+3 \, x \, y+5 \, y^{2}/4 \end{cases}\]
with parameters: \(d = -0.000001, \quad e = -0.1\)

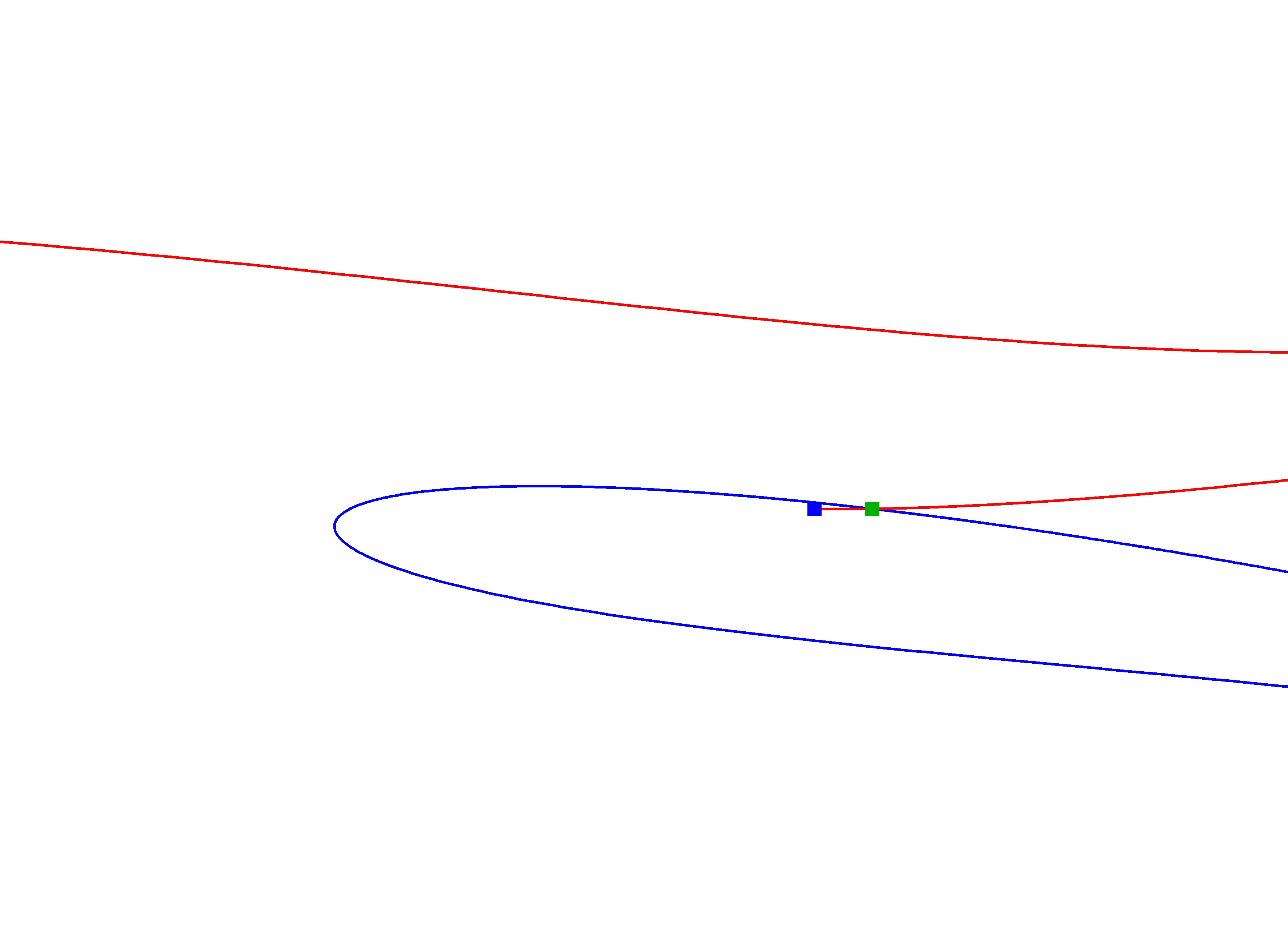

has the following phase portrait done with P4. If you want, you may download the P4 file here. Since the image is not clear enough, we have added a ZOOM of it.
The phase portrait appears in the following papers
- With name \(U^1_{C25}\) in {J. C. Artés, J. Llibre and A. C. Rezende}, Structurally unstable quadratic vector fields of codimension one, Birkhäuser/Springer, Cham, 2018, vi+267 pp.
- With name \(an33 Fig 2.43\) in {X. Huang}, Qualitative analysis or certain nonlinear differential equations, {Ph.D. U. Delft}, (1996).
Missed in:
- {J. W. Reyn and X. H. Huang}, Separatrix configurations of quadratic systems with finite multiplicity three and a $M^0_{1,1$ type of critical point at infinity}, Report U. Delft (1997?).
Bifurcations in codimension 0
- Bifurcation interface between the codimension 0 portrait \(QS10_{9}^{(0)}\) and \(QS5_{4}^{(0)}\).
